As-Built Drawings: What They Are, Why They Matter, & How to Create Them

Most contractors treat as-builts as a close-out formality. The best ones use them to prevent disputes, win client trust, and stand out at handover.

As-built drawings are the last thing most contractors think about, and that’s the problem.

A missing or sloppy set of as-built drawings is a liability waiting to surface.

Your as-builts are also the document a future remodeler, buyer, or inspector uses to judge the quality of your work.

Most builders treat as-builts as a close-out formality at the end of the construction process, something to file and forget.

Smart contractors know their as-builts are worth far more than that.

This guide breaks down what as-builts are, what they need to include, what good ones look like, and how to create them on any construction project without burning a week of your time.

Key Takeaways

• As-built drawings show a building exactly as it was constructed, including every change made during construction between the approved design and the finished project.
• The most useful as-builts are updated throughout the construction process, not reconstructed from memory at close-out.
• The details most often missing from residential as-builts are MEP routing as actually installed and underground utility locations.
• Starting from a digital design file in Cedreo gives builders a clean, dimensioned baseline to mark up, so creating as-built drawings is faster and more accurate.

Why trust us? Here at Cedreo, we’ve got 20+ years of experience working with housing pros in the home design space. So we know what it takes for contractors and builders to create project designs that help them land more clients!

What Are As-Built Drawings?

As-built drawings are a final set of drawings that show a building exactly as it was constructed, including every change made between the approved design and the completed project.

Also called red-line drawings, record drawings, or as-constructed drawings, as-builts capture the real condition of the finished building, not the version that lived on paper before ground was broken.

A lot changes between design and reality.

Walls shift, fixtures move, materials get swapped, and site conditions force adjustments nobody planned for.

That gap between what was drawn and what was actually built is exactly what accurate as built drawings exist to record.

Long after you’ve moved on, your as-built documentation is the reference point for everyone who touches the building next:

• Building owners and facility management teams, who lean on them for future maintenance.
• Remodelers and renovation crews, who use them to plan future renovations.
• Inspectors who get a single source of truth long after the construction phase ends.

As-Built Drawings vs. Construction Drawings: What’s the Difference?

Construction drawings show the intended design. As-built drawings show what was actually built.

The gap between the two is the whole reason as-builts exist.

Your original construction drawings are the plan you set out to follow, while the as-built drawings reflect the actual construction once the dust settles.

Construction drawings	As-built drawings
Show the intended, approved design	Show the structure as actually built
Created before construction starts	Finalized at project completion
The plan to build from	The record of work completed
Used to bid and build the job	Used for renovations, sales, and disputes

As-Built Drawings vs. Record Drawings: Is There a Difference?

For residential construction, as-built drawings and record drawings are effectively the same thing.

The terms get used interchangeably on most jobs, though some jurisdictions and larger commercial project types draw a line between them.

Where the distinction matters, it usually works like this: the redline drawings are the marked-up working copy kept on site, and the record drawings are the clean as-builts produced from those red line drawings.

On a typical building project, you won’t lose sleep over the difference.

What As-Built Drawings Need to Include

A good set of final as-built drawings provide details on what’s actually built.

Here’s what every residential as-built package should capture so the as-builts accurately represent the finished project:

• All deviations from the original drawings, marked clearly: Each change marked in red on a copy of the approved plan, including any doors, windows, or other architectural elements that moved, with a short note explaining the reason (site condition, client request, material substitution, or structural adjustment).
• Exact dimensions of every deviation: Not just that a wall moved, but by exactly how much. Vague notes like “shifted” are useless to a remodeler or inspector who needs the actual dimensions and precise measurements.
• Changes to structural elements: Any adjustments to structural components, load bearing walls, posts, or beams, since these matter most for future work on the building.
• MEP routing as actually installed: The real paths of electrical systems, plumbing systems, and HVAC ductwork as run, not as designed. Note changes to lighting fixture and panel locations too.
• Underground utility locations: Depth from finish grade and horizontal offset distances to permanent surface features.
• Material specifications: The actual materials and finishes used, which rarely match the original plans exactly.
• Dates on every change: When each deviation was made or approved. A dated record is far more defensible in a dispute than an undated pile of markups.
• Approval noted for each change: Whether the deviation was builder-initiated or client-requested, and whether approval was verbal or written.
• Related shop drawings: Attach any related shop drawings related to areas custom-built on-site.
• A color code and legend: So any future party can read the drawings without guessing.

Two items go missing from residential as-builts more than any others:

1. Mechanical, electrical, and plumbing routing as actually installed

2. Underground utility locations.

Both are the details a remodeler desperately needs years down the road.

They vanish for the same reason: the subs who installed those electrical and plumbing systems rarely report their field changes back to the GC before they pack up and leave.

PRO TIP! Before any trench gets backfilled or any wall gets closed up, snap a few dated photos with a tape measure in the frame. Those photos are the cheapest insurance you’ll ever buy against a missing underground utility or a buried pipe run.

As-Built Drawing Examples

The fastest way to understand as-builts is to look at what these drawings actually capture.

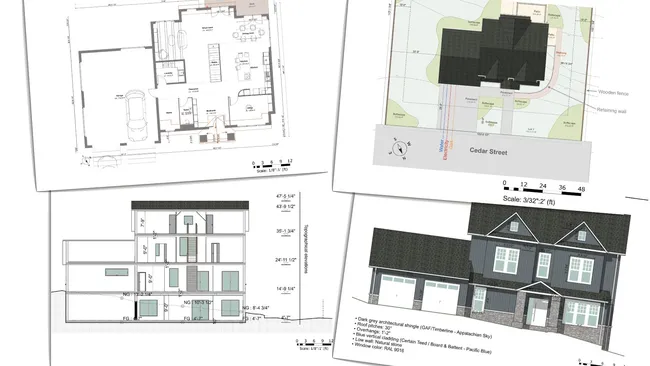

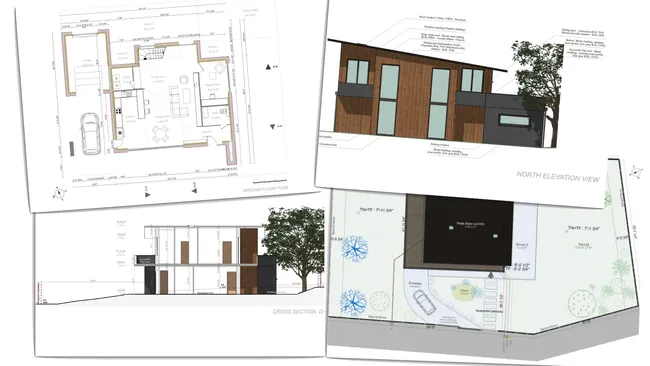

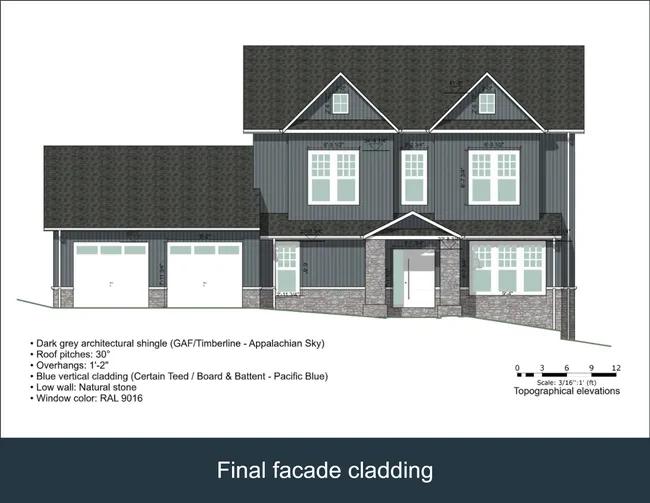

Here are the three most common types of as-built drawings you’ll produce on a residential construction project.

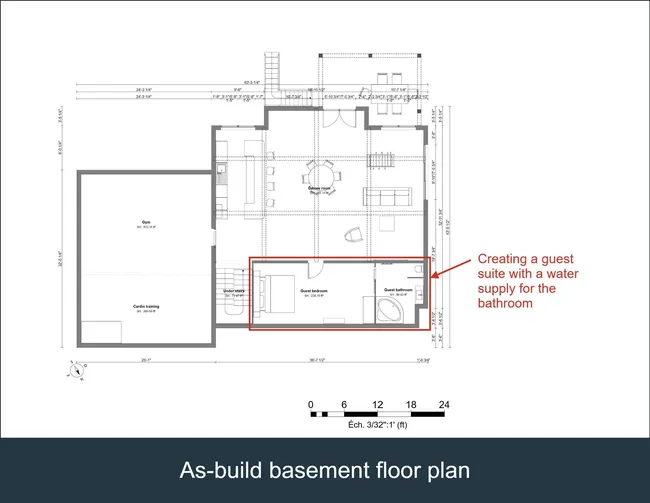

Floor Plan As-Built Example

The floor plan as-built is the workhorse of any residential package.

It shows dimensional deviations from the approved drawings: walls that shifted, rooms that changed size, doors or windows that got relocated.

It’s the first drawing a remodeler reaches for, because it answers where everything actually is.

Starting from a clean digital floor plan drawing makes those deviations easy to mark against accurate dimensions.

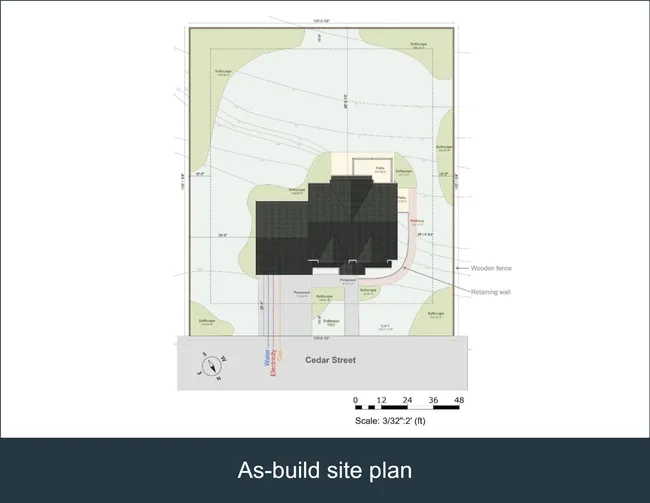

Site Plan As-Built Example

A site plan as-built shows the relationship between the structure and the lot as actually built.

That means real setbacks, utility connections, grading, and driveway placement, not the preliminary layout.

It matters most for permit close-out and for any future addition or accessory structure, so the same care you’d put into the original site plan drawing belongs in the as-built version.

MEP As-Built Example

An MEP as-built marks the actual routing of mechanical, electrical, and plumbing services as installed.

Even a rough notation of where pipes and conduit run beats nothing at all when a remodeler opens a wall years later.

PRO TIP Even though Cedreo doesn’t produce MEP drawings, you can use a Cedreo floor plan and site plan as a clean baseline layer for MEP-related annotations. You can create a new floor plan document as an as-built where you can add annotations, lines, and notes on MEP locations.

How to Create Accurate As-Built Drawings

Understanding how as-built drawings come together is the first step to producing good ones.

The builders who turn out clean as-builts all do the same handful of things, and none of them involve a frantic scramble during the final week of the construction project.

Track Changes Throughout Construction, Not at the End

This is the single habit that separates clean as-builts from painful ones.

As-builts assembled from memory at project completion are less accurate and take far longer to produce than as-builts updated throughout the construction process.

So keep your as-builts marked up on site and update them with detailed notes the day a deviation happens.

On larger projects, standard contract clauses often require updates no less than weekly, and that’s a benchmark worth adopting even on a single house.

Start With Your Original Design Drawings

Keep one printed copy of the original design drawings on the job site, and make it the single set everyone marks up.

The mistake to avoid is letting each sub or crew member submit their own hand-drawn sketches or markups scribbled on phone screenshots.

Those scattered notes never line up, and you waste time guessing whose version is right.

A clean, accurate set that’s printed out from software like Cedreo and is easy to access on the site gives the whole crew one baseline to red-line against in the field.

Then assign one person to transfer those field notes into the digital file, ideally at the end of each week.

The result is a clean, dimensioned as-built instead of a stack of scanned hand-drawn designs nobody can read.

Get Sub-Contractor Input Before Close-Out

Your subs make field changes you’ll never see unless you ask.

It’s the general contractor’s responsibility to collect markups from each sub and compile them into the full set of construction documents.

Builders who wait until after close-out to chase subs for this information learn a hard lesson: memories fade, the markups never arrive, and the as-builts end up full of holes.

So collect them while the job is still fresh, so the design team and the GC end up with one consistent record.

Compile and Deliver the Full Package at Project Close

The final step is assembling everything into one clean, organized set of final drawings.

Organize the as-builts by drawing type, with a cover sheet identifying the project, builder, date of completion, and a brief change log.

These as-built documents become the official record of the project once you hand them over.

Then hand the package over at closing, alongside the keys and warranty documents.

Handing over a clean set of as-builts is a client trust moment most contractors skip.

For design-build firms, this close-out package carries extra weight: since one team owned the project from concept to completion, the as-builts are the final proof of that single-source accountability. Learn more in our complete guide to design-build construction.

PRO TIP! Deliver the as-built package in a branded folder or PDF with your logo on the cover sheet. It turns a filing obligation into a marketing touch the homeowner remembers when their neighbor asks for a referral.

Common As-Built Drawing Mistakes (and How to Avoid Them)

Most as-built documentation problems trace back to the same handful of mistakes made during construction.

Here’s what to watch for, and what to do instead.

Mistake #1 – Leaving it until the end

The most common mistake by far. As-builts pieced together from memory at close-out are inaccurate and take far longer to produce.

Do this instead: Update a marked-up set as deviations happen, so the package is nearly done before close-out.

Mistake #2 – Vague notations without dimensions

Marking a wall as “shifted” with no measurement makes the change impossible to act on later.

Do this instead: Record the exact distance every element moved.

Mistake #3 – Missing MEP deviations

Electrical, plumbing, and HVAC project teams change field routing constantly without telling the GC.

Do this instead: Build a simple system for collecting sub markups before they leave the site.

Mistake #4 – No client approval on record

A change the client approved verbally but that isn’t noted as approved creates ambiguity in any future dispute.

Do this instead: Note who approved each change and how.

Mistake #5 – Using the wrong baseline

Marking deviations on a preliminary or unapproved drawing produces a record that doesn’t accurately represent the approved scope.

Do this instead: Always mark against the final approved set.

Turn As-Built Drawings Into a Competitive Edge

Accurate as-builts do more than close out a job.

These as-builts prove your work, prevent disputes, and hand your client documentation they’ll thank you for years later as they plan future projects.

And you don’t need CAD skills to produce your as-built drawings.

With Cedreo, you can:

• Start from a clean, dimensioned digital floor plan or site plan as your as-built baseline
• Update your digital design as changes happen, so nothing gets lost
• Deliver professional, client-ready plans and 3D visuals that make your handover stand out

Sign up for a free Cedreo account today.
